Profile

• With an extensive range of interfaces and mounting options, installations can be readily customized,which represents savings for the user.
• Built-in RS232 serial communication
• Built-in RS485 networking
• Analogue Output 4-20mA or 0-10V with 1/65,000 resolution
• Isolated digital I/OModbus ASCII
• Profibus DP – DIN Rail Mount Interface

• 99 Recipes
• Batch size adjustment by percentage or ratio
• Report and usage logs
• Up to 20 Materials
• Up to 3 Speed FillSoftware timers, pause sequences and safety interlocks
• Auto-Jogging routines
• Auto-InFlight adjustments
• Targets may be entered as positive or negative values

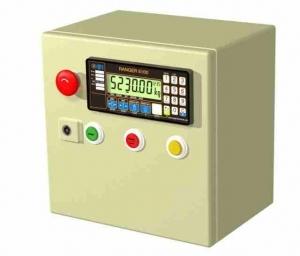

The 5110 and 5120 batching consoles are simple and cost effective means of installing a stand-alone automatic batching system.  They feature a 5100 panel mounted in the steel enclosure with:

• din-rail mount VAC to VDC power supply
• emergency stop button
• 0215 4 input/4 output relay module
• three (3) assignable operator buttons

• 99 Products - preset tare, setpoint targets and counting sample information can be stored for each product along with product totals
• Check weighing - 5 grading bands (4 setpoint check weights)
• Statistical reporting on product grading
• Totalising, Counting and GradingProgrammable function key
• Four (4) voltage free relay outputs
• Outputs are independent and isolated
• Rated to 250VAC and 8A

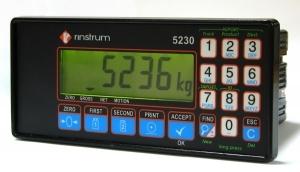

The 5230 is our specialist indicator designed as an economical solution for midsize weigh bridge operations. It supports weigh in weigh out and has dedicated 1st and 2nd function keys. Operator entry is simplified through the alphanumeric keypad and on screen prompting. There are standard printing formats available to suit each type of application.

The D740 and R320 have been combined to create a high visibility weight indicator that can take either a load cell input or analogue input.
They are ideal for displaying the load on large cranes to assist operators in not overloading the crane – and can be used on large bins or silos to display the weight so as it’s visible from a distance.

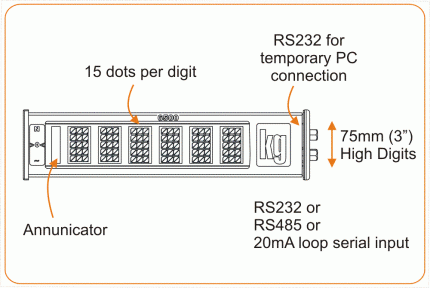

The 6500 is an electromechanical remote display that is part of Rinstrum’s range of large remote that are built for industrial applications for both indoors and out. The range includes the D640, D740 and 6500, they feature:

• RS232, RS485 and 20mA loop serial input;
• 3 annunciators;
• Shatterproof laminated glass window;
• Compatibility with a wide range of indictors.

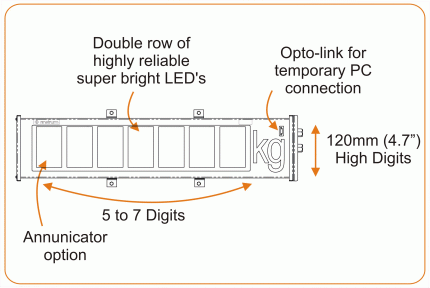

The D740 is a super bright LED remote display that is part of Rinstrum’s range of large remote that are built for industrial applications for both indoors and out. The range includes the D640, D740 and 6500, they feature:

• Isolated RS232, RS485 and 20mA loop serial input;
• 3 annunciators;
• Shatterproof laminated glass window;
• Compatibility with a wide range of indictors.

• RS232 to RS485 (Stock Code: 0080) Converts RS232 to RS485 full duplex four wire for long distance data communications.  Useful on an R320, R323 or 2100 for long distance communications or to interface to an existing RS485 installation.
• RS232 to 20mA Digital Current Loop (Stock Code: 0081) Converts RS232 transmit only to 20mA current loop.

Built in communications and outputs:

• Built in RS232 communications port for connection to printer or PC
• Two outputs – isolated high side driver up to 300mA

Ideal for trade approved applications:

• Programmable function key – Unit switching, Counting, Manual Hold, Peak Hold, Live Weigh
• Configurable printing combined with the clock calendar allow for traceable dockets to be printed.

• PIT/PITLESS truck
• Happer Weigher
• Bagging Scales

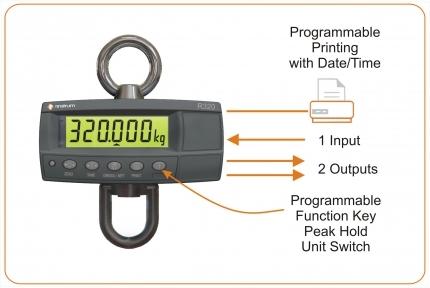

• Crane Weigher
• Industrial Platform Bench
• Rail Weigh Bridge
• Computerised Batching Systems
